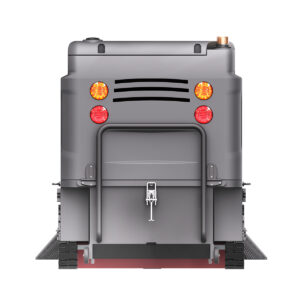

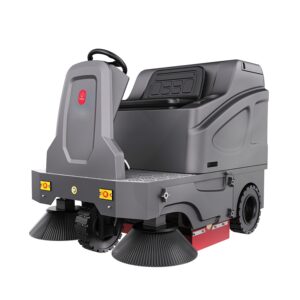

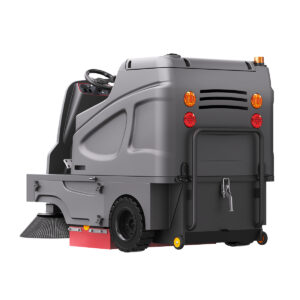

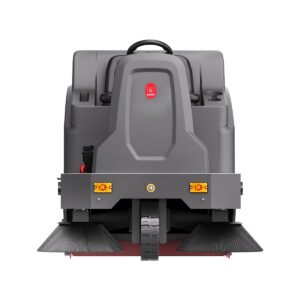

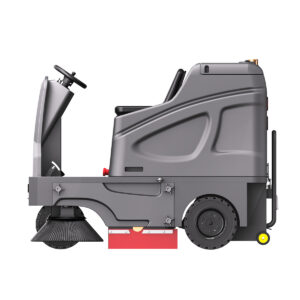

M5 – Ride-On Semi-Enclosed Cabin

Home

The Genius M5 is an accessible, medium-sized driving sweeper with semi-enclosed cabin designed for high maneuverability and efficient cleaning in spaces that require less heavy-duty equipment than the M7, such as warehouses, mid-sized lots, and large commercial facilities. Its lower power requirements and lighter weight make it an economical choice.

LOG IN or Fill out this "Buy" form to get SPECIALS

Buy

LOG IN or Fill out this "Rent" form to get SPECIALS

Rent

LOG IN or Fill out this "Lease" form to get SPECIALS

Lease

Service Call Request

Standard Specifications
Machine Features
Warranty & Service
Specials

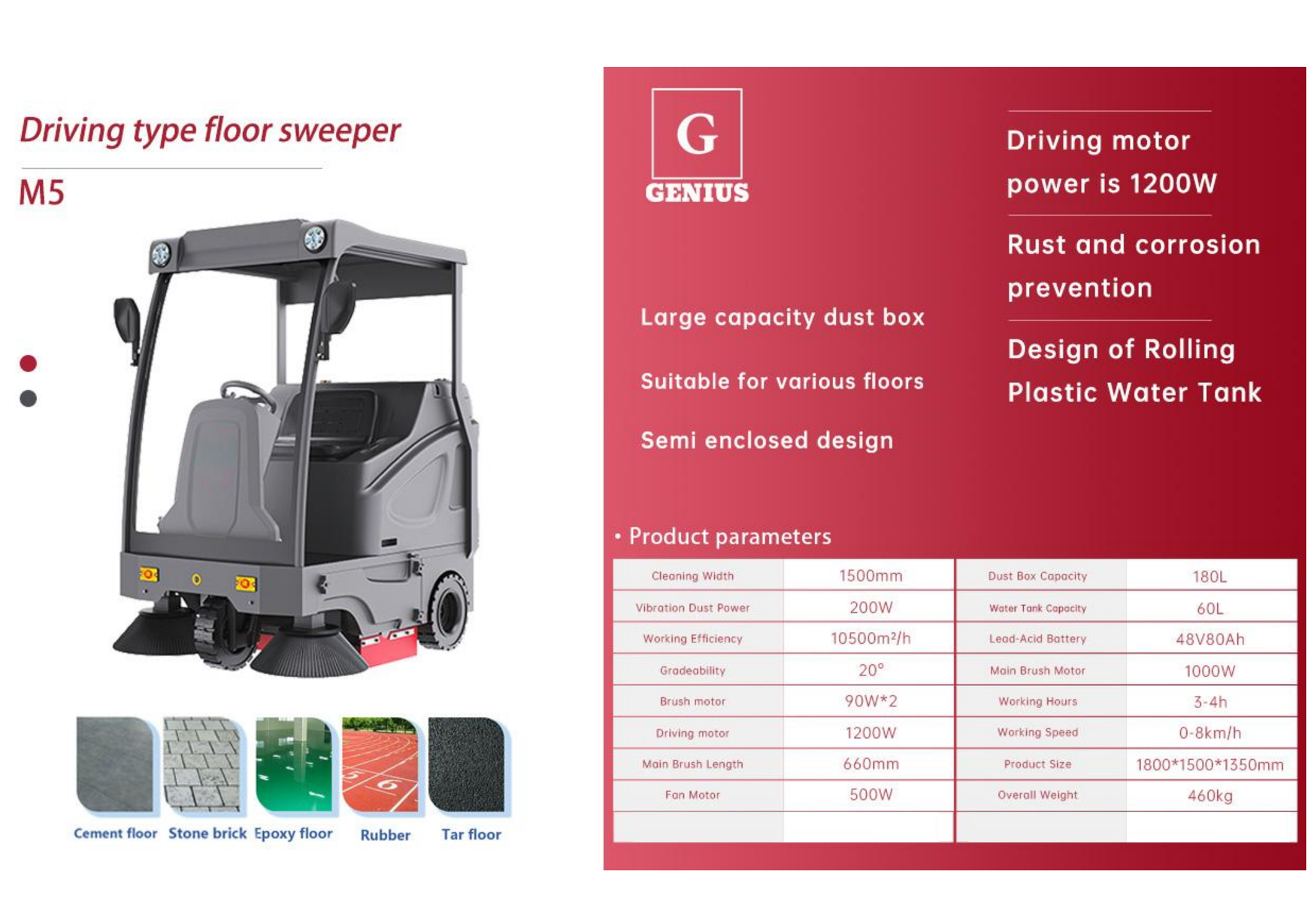

Standard Specifications

Name	Configuration
Model	GENIUS M5
Cleaning Width	1500 mm / 59"
Main Brush Length	660 mm / 26"
Dust Box Capacity	180 Liters / 48 Gallons
Water Tank Capacity	60 Liters / 16 Gallons
Working Efficiency	10500 Square Meter / Hour
Lead-Acid Battery	48V-80Ah
Gradeability	20°
Max. Driving Speed	12 Kilometer/Hr 7.5 Miles/Hr
Max. Working Speed	8 Kilometer/Hr 5 Miles/Hr
Drive Motor	1200 W / 1.60 HP
Main Brush Motor	1000 W / 1.34 HP
Fan Motor	500 W / .67 HP
Vibration Dust Power	200 W / .27 HP
Brush Motor	2 Nos. - 90 W / 0.12 HP Each
Working Hours	3 to 4 Hours
Filter Area	6 square meter
Product Size	1800 mm x 1500 mm x 1350 mm / 70" x 60" x 53"
Overall Weight	460 Kg / 1014 Lbs

Machine Features

Name	Configuration

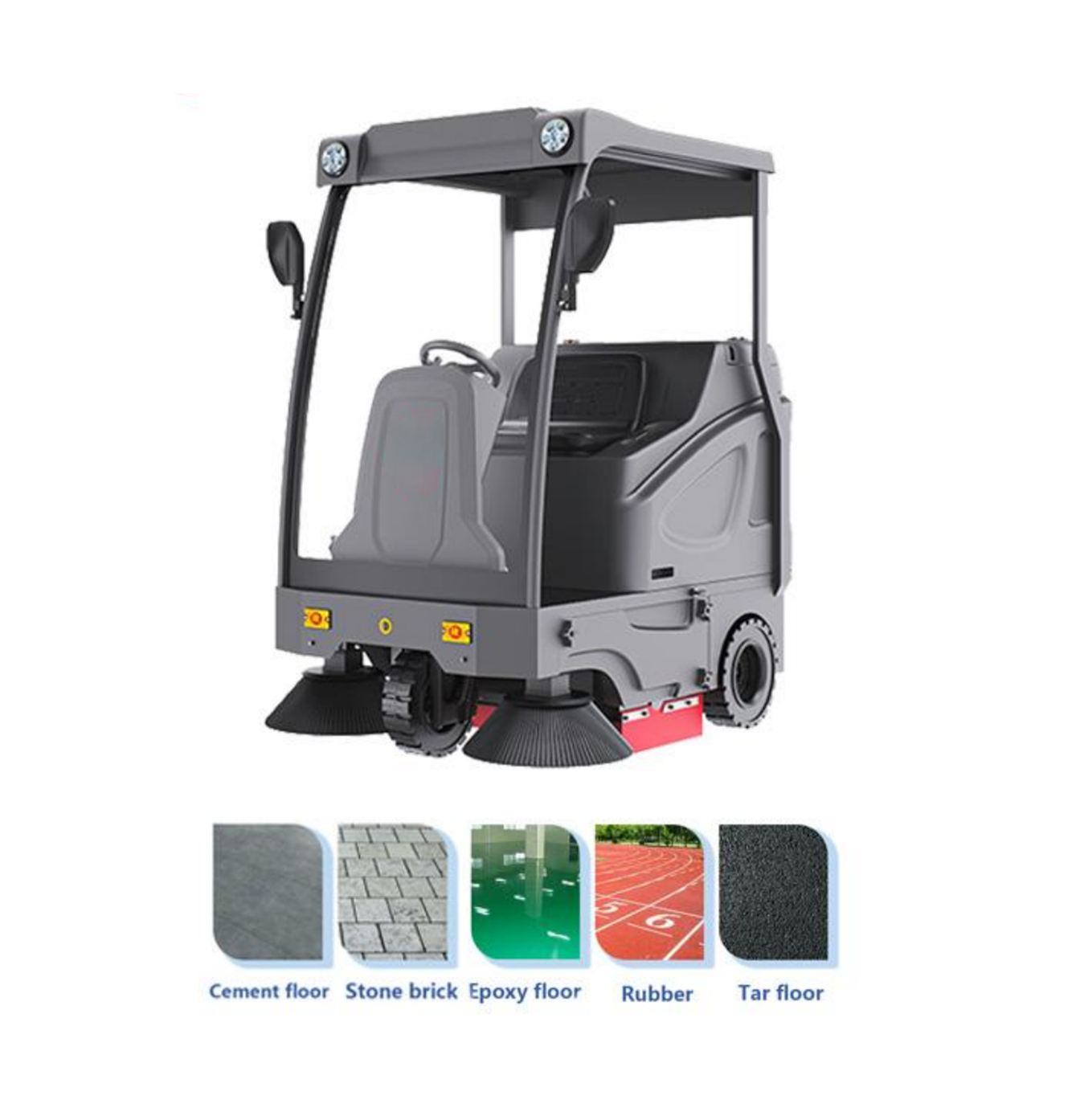

Machine Features	Suitable for Various Floors Large Capacity Dust Box Semi Enclosed Design Good Breaking Ability

Warranty & Service

Name	Configuration
Standard Warrenty	1 Year (500 Hrs) for Major Electrical Parts / Power Train / Battery
Service	Online Access to Advance Service Software (Free Upgrade to Qualified Customers) Free Maintenance History (Free Upgrade to Qualified Customers) Quick service call request via online portal (without going those automated phone system) Quick service call request via emergency text number
